| Place of Origin: | China |
| Nom de marque: | Ironman |
| Certification: | CE; FCC; ISO9001 |
| Model Number: | IM.XS.02 |

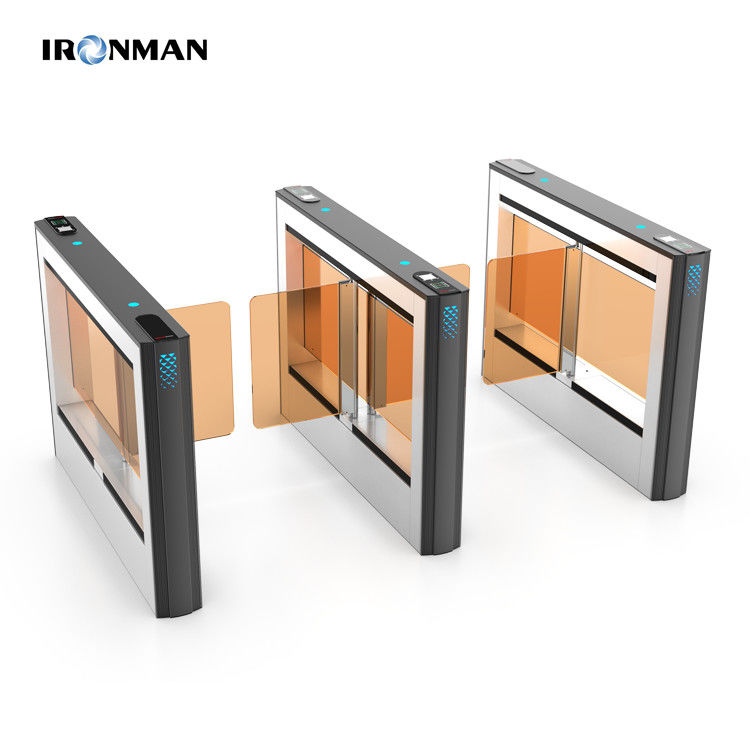

Product Overview
In today’s fast - paced and security - conscious world, efficient management of pedestrian flow is of utmost importance. Our pedestrian access gates are at the forefront of this domain, offering a comprehensive solution for controlling entry and exit in a wide range of settings. From commercial complexes and corporate offices to public transportation hubs and educational institutions, our gates are engineered to meet the diverse needs of modern society.
Product Technical Parameters
1 Dimensions (Customization Accepted) : length 1400* width 166* height 1000mm;
2 Material:5mm+3mm thickness aluminum alloy and 1.0mm thickness SPCC
3 Power Supply Voltage: AC110~220V±10%, 50Hz;
4 Drive Motor: brushless drive motor；
5 Sensors:6 pairs of IR sensors;
6 Working Environment Temperature: -30℃ ~ +70℃;
7 Relative Humidity: relative humidity ≤95%, no condensation;
8 Input Interface: Dry contact; 12V level signal or pulse width > 100ms 12V pulse signal, drive current: > 200mA;
9 Communication Interface: RS485 electrical standard;
10 Channel Width:≤1110mm；
11 Traffic Speed: ≤30 people/minute;
12 Passing direction: support one-way and two-way (optional);
13 Working Environment:indoor/outdoor
14 Expandable Functions:can be connect to to peripheral ID, IC card, fingerprint recognition, face recognition, finger vein recognition, two-dimensional code recognition, ID card recognition, mobile APP opening, human integrated anti-static equipment, security gate, visitor system, etc.
| Functional Parameters | Alarm Function | It has an audible and visual alarm function. |
| Anti - interference | It can effectively prevent the gate from malfunctioning due to external factors such as electromagnetic interference. | |
| Passage Mode Setting | One - way passage, two - way passage, free passage (with wing arms retracted), etc. can be set through the buttons on the main control board. | |
| Anti - tailgating | It prevents an excessive number of unauthorized people from passing through at one time. | |
| Anti - pinching Function | When the gate is closing, it will stop closing upon detecting an anti - pinching signal. | |
| Automatic Reset | After the gate is opened, if the user fails to pass within the specified time, the system will automatically cancel the user’s current passage permission. The default time is 10 seconds, and it can be set through a switch. | |
| Access Control | Multiple biometric devices can be connected to the external ports. | |
| Power - off Gate Opening | The gate will open when the power is off. | |
| Fault Detection | The control board supports fault type detection to assist in analyzing the cause of the fault and handling abnormal faults. | |
| Passage Indication | There are passage status indicator lights, and an alarm function can be set for exceeding the stay time in the passage. | |
| Extended Functions | Vehicle Passage Mode | Normal: Normal pedestrian passage mode |
| Vehicle Passage: Passage mode for cars, electric vehicles, and motorcycles | ||
| Voice Broadcast | A voice module can be extended, and the volume can be adjusted. | |
| Opening/Closing Delay | The time delay for the gate to open after receiving the opening signal and the time delay for the gate to close after pedestrians pass can be set. The default value is 0 seconds | |
| Card - swiping Inside the Passage | Enabled: Card - swiping verification is allowed inside the passage. | |
| Default Disabled: Card - swiping inside the passage (in the induction infrared area) is invalid. | ||
| Whether to Block with Gate Closing for Tailgating and Reverse Passage | The gate will not close for reverse or tailgating passage (Person A swipes the card, and Person B passes). | |
| The gate will close once and then open again for reverse or tailgating passage. | ||
| The gate will close for reverse or tailgating passage and will not open again. | ||
| Fire - fighting Linkage | Normally Open Mode: The gate remains in the open state. | |
| Normally Closed Mode: The gate remains in the closed state. | ||
| Passage Modes | Two - way Passage: Two - way card - swiping for normal pedestrian passage. | |
| Two - way Free Passage: Two - way free passage without card - swiping verification. | ||
| One - way Passage: One - way (A) card - swiping to open the gate for normal pedestrian passage. Reverse (B) card - swiping is invalid, and the gate remains closed. | ||
| One - way Free Passage: One - way (A) free passage, and reverse (B) requires card - swiping verification. Prohibited Passage: Two - way card - swiping is invalid, and the gate is locked. |
||
